SKU : das9sid8ire000fksdi0
Price range: $52.99 through $116.99

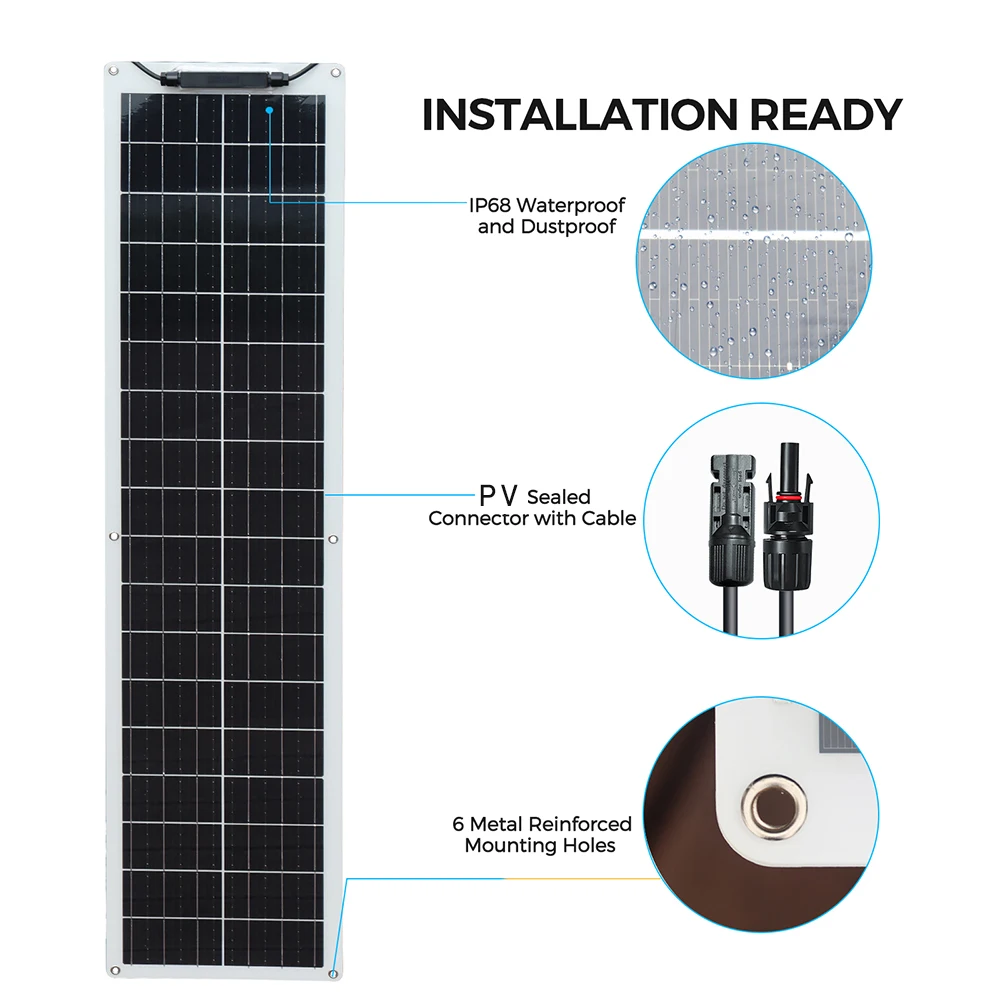

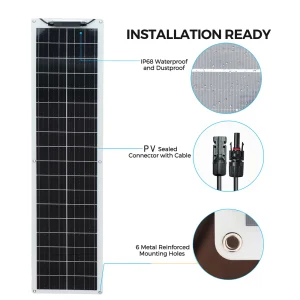

High-Efficiency Mono crystalline Solar Panels Equipped with mono crystalline silicon material and 21.8% module efficiency, this solar panel delivers superior performance for off-grid applications with maximum power output up to 100W.

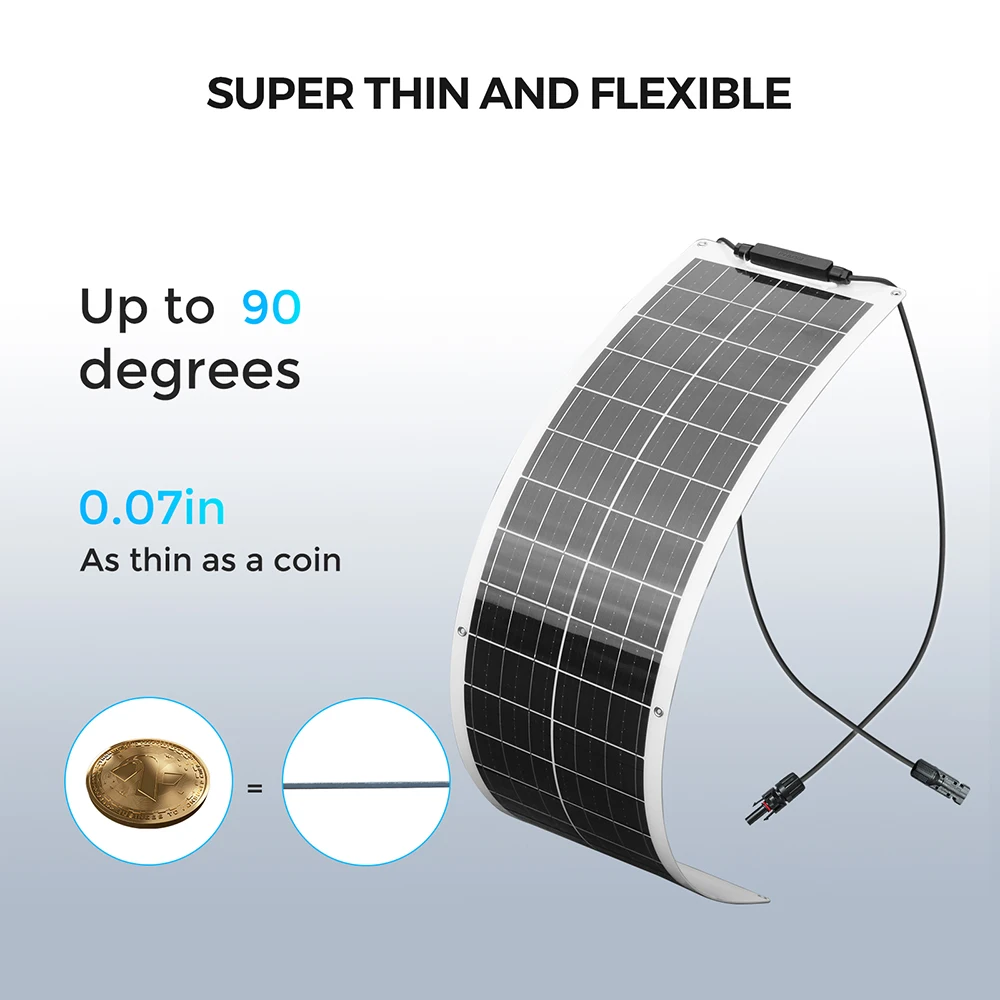

Flexible & Foldable Design for Portability Featuring a flexible and foldable structure, the panel is lightweight and easy to transport, ideal for camping, RVs, or remote installations with 100W SOLAR KIT and 50W SOLAR KIT options.
Compatible with 12V / 24V Systems Designed for both 12V and 24V systems, this 100W solar kit ensures versatile use in various off-grid setups, with a maximum power voltage of 19.8V for optimal charging performance.
High-Quality Components with Safety Certifications Certified with CE, FCC, Ro HS, and WEEE, the kit ensures safety and compliance, while the 36-cell configuration enhances durability and consistent energy output.
Compact & Lightweight for Easy Setup Measuring 820 x 370 x 3mm and weighing only 2.500 kg, the 100W SOLAR PANEL is easy to install and store, with a compact package size of 105 x 32 x 4 cm.
Perfect for Off-Grid Energy Needs Ideal for charging batteries, powering small devices, or supporting off-grid systems, this 50W / 100W solar kit provides reliable, renewable energy with no harmful chemicals.
Available in Multiple Configurations Offered as a 1-piece pack, the kit supports customization with options including 12V 50W Solar kit, 19.8V 50W, and SOLAR KIT 100W for flexible application needs.
Your orders are shipped right to your doorstep
We aim to exceed expectations by providing exceptional customer support.
Your payments are secure with our private security network.
100W Solar kit Maximum power voltage: 12V / 24V

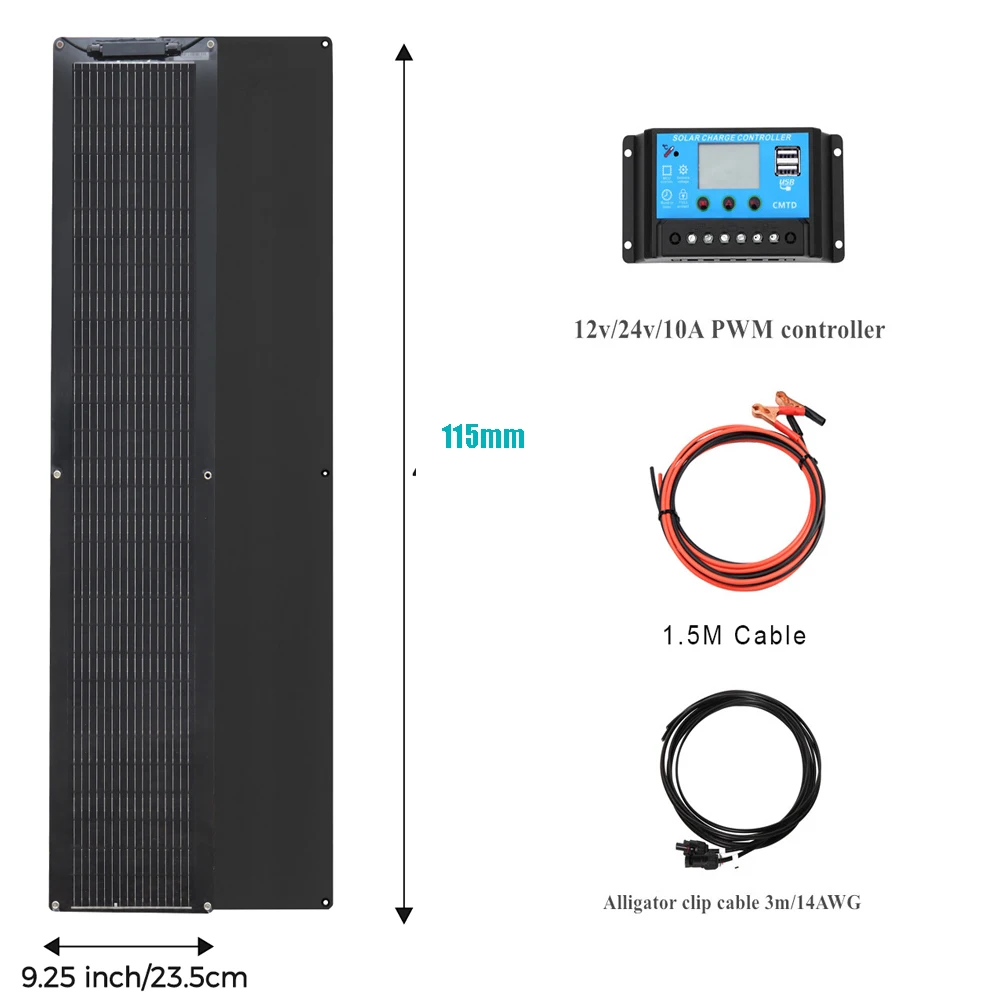

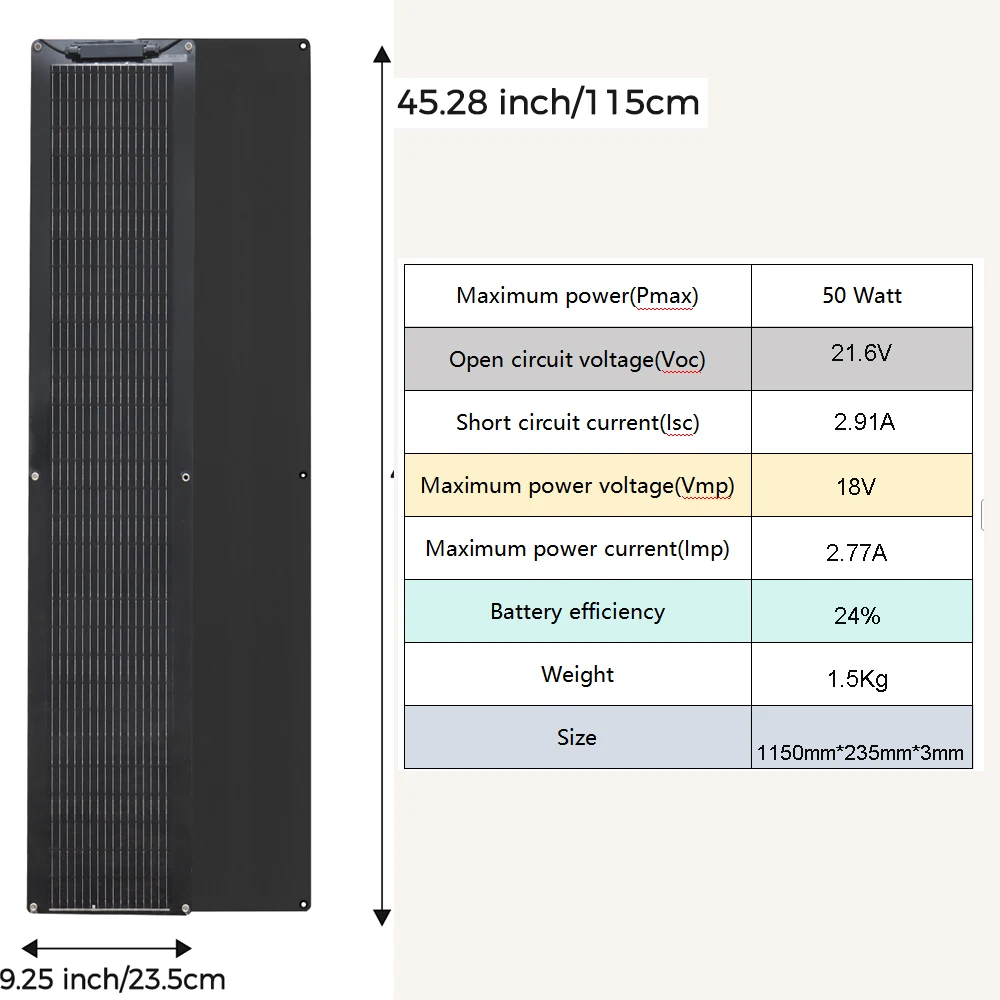

18V 50W Solar panel Size: 1150*235*3mm,

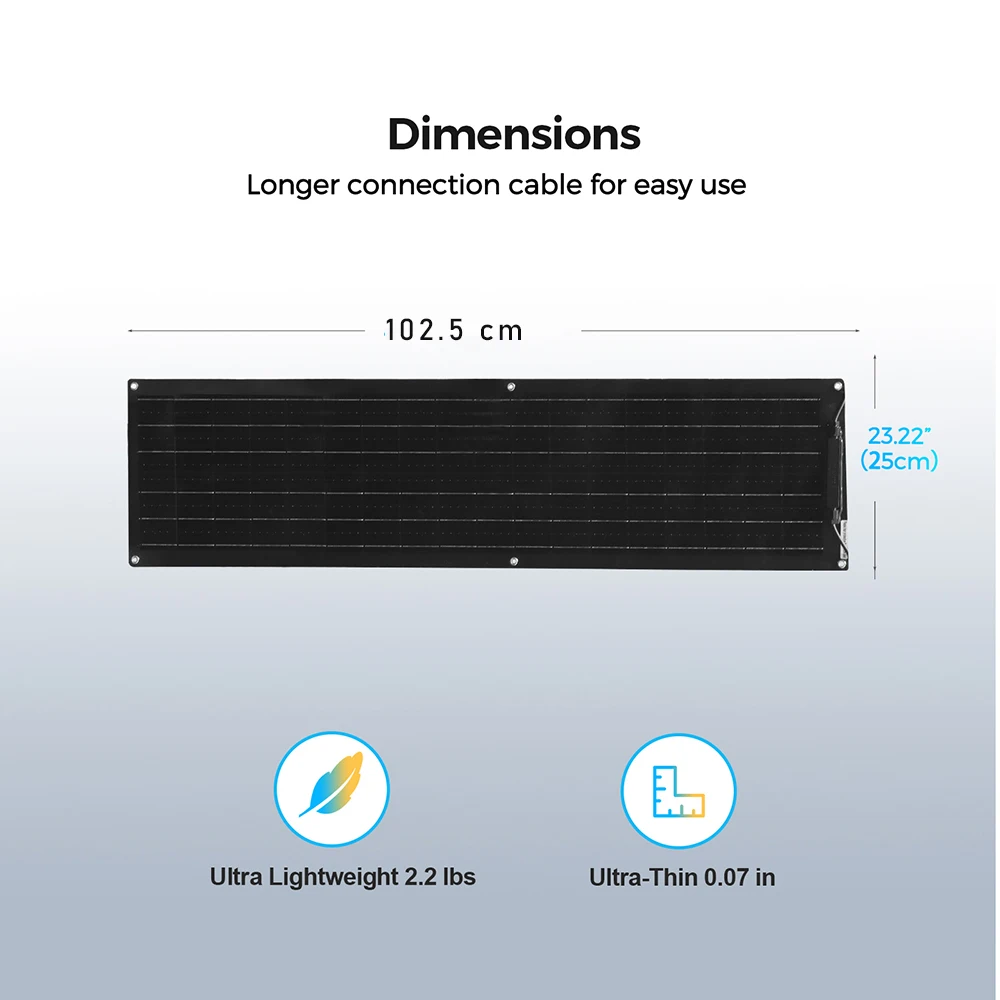

19.8V 50W Solar panel Size: 1025*250*3mm
19.8V 50W/50W/19.8V Size: 820*370*3mm
50W Solar Panel Maximum power voltage: 19.8V
50W Solar kit Maximum power voltage: 12v
Brand Name: xinpuguang
Certification: CE,FCC,RoHS,weee
Flexible Solar Panel: Yes
Foldable Solar Panel: Yes
Material: Monocrystalline Silicon
Max. Power: 50 Watt / 100 Watt
Model Number: Solar Panel
Module Efficien: 21.8%
Nominal Capacity: 50W / 100W
Number of Cells: 36 cell
Number of Panels: 1
Rigid Solar Panel: No
Size: 41.73 inch *10.9 inch *0.01 inch/820*370*3mm,
Type: Solar Panel
is_customized: Yes
50 Watt 12V 100 Watt Complete Solar Panel Starter Kit OR Solar Panels for Charge Controller for RV, Camper, Vehicle, Caravan and Other Off Grid Applications 12 Volt 24 Volt
19.8V 50W Solar Panel Specification:
Maximum power (Pmax) 50W
Output tolerance ± 3%
Maximum system voltage 600V DC
Open circuit voltage (Voc) 19.8V
Short circuit current (Isc) 2.52A
Maximum power voltage (Vmp) 23.76V
Maximum power current(Imp) 2.77A
Cell efficiency 24%
Operating temperature (NOCT） 45±2℃
Temperature range -40℃～+80℃
Number of cells 32pcs
Weight 1000g
Size 1025*250*3MM
Color White/Black
Package list:
1 pcs solar panel 50W 1
OR
2 pcs solar panel 50W
OR

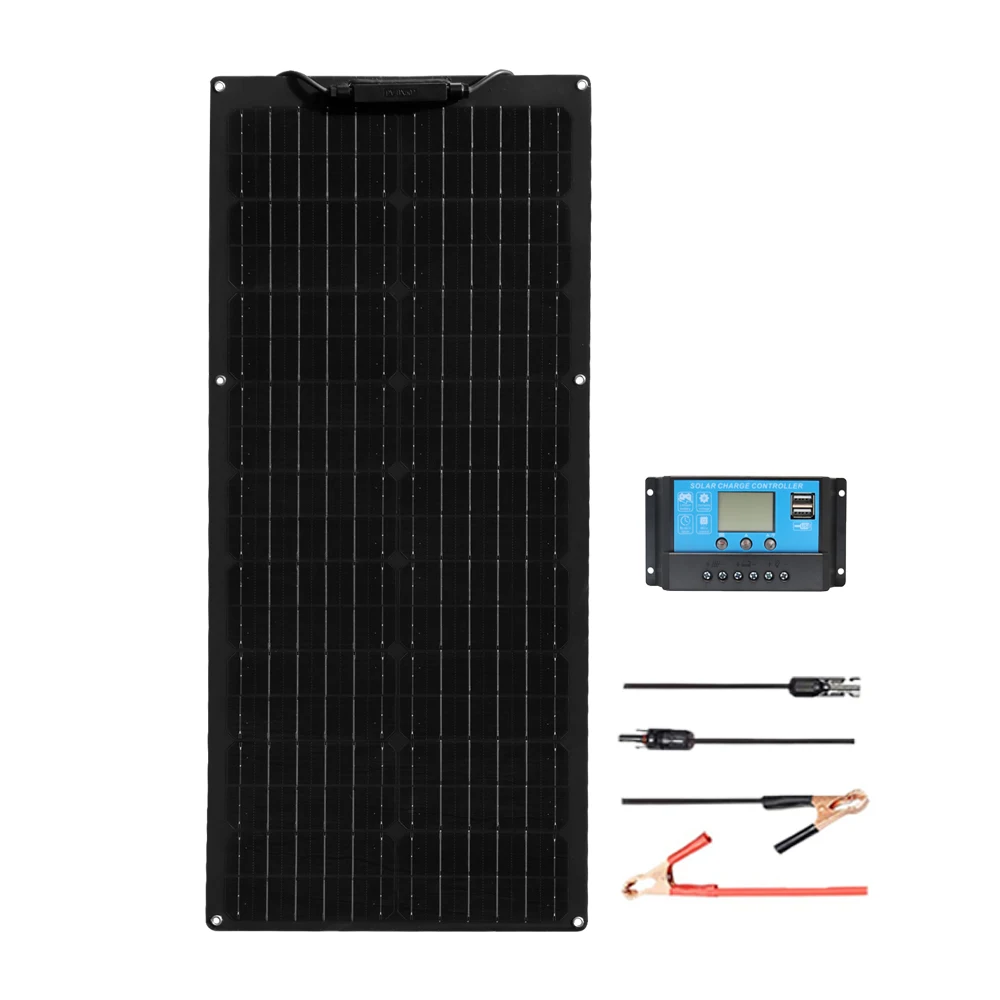

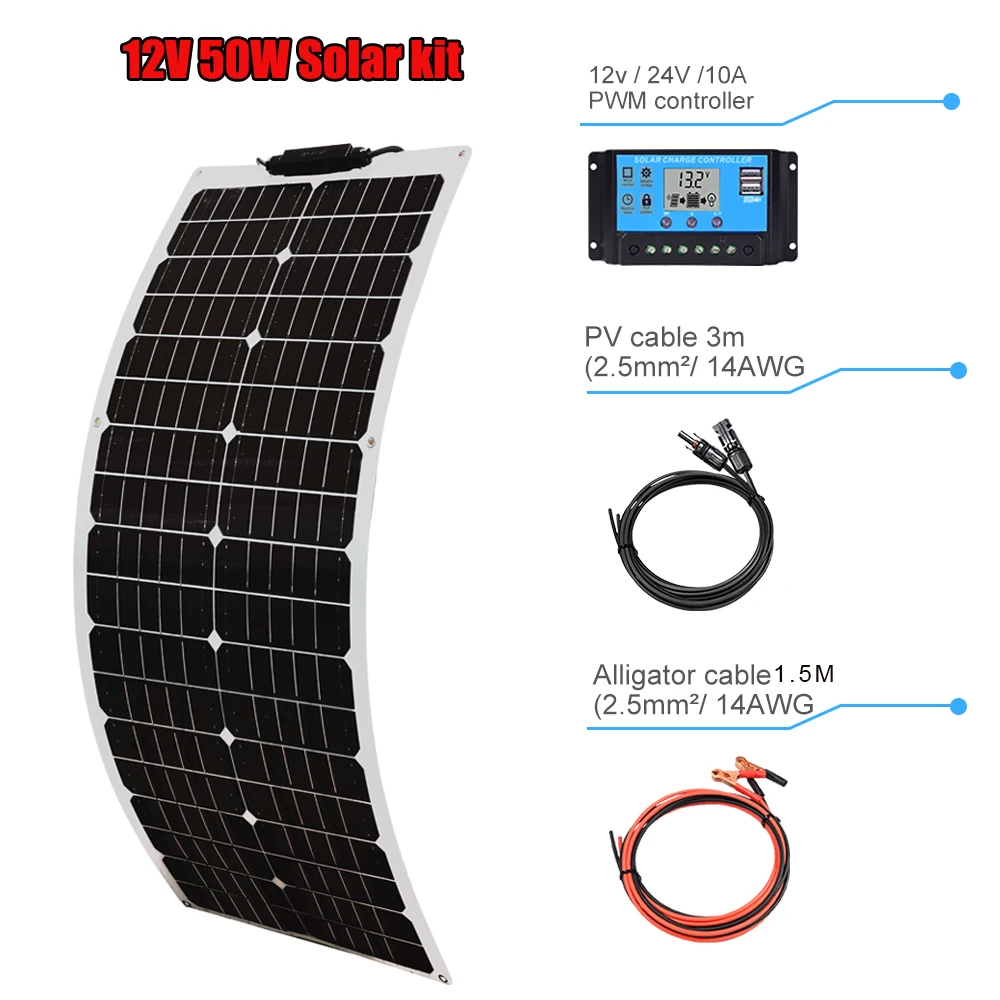

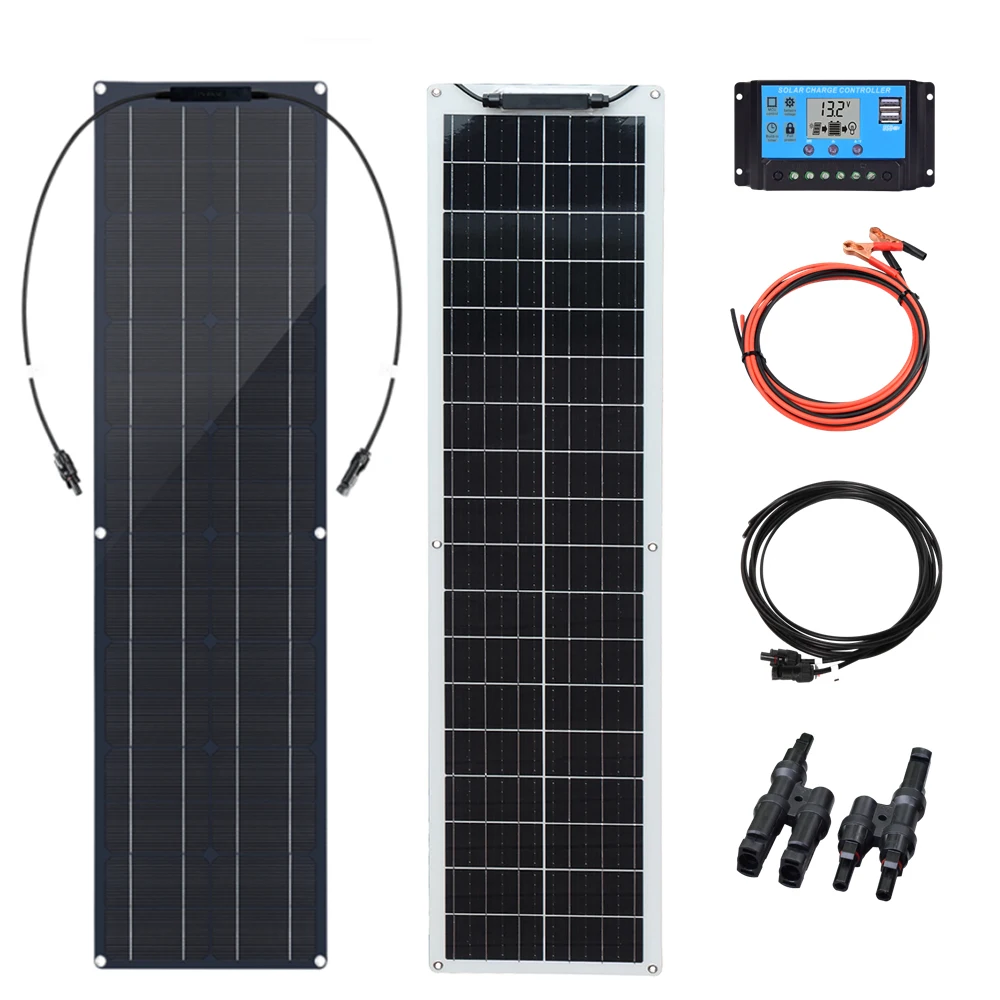

1、 1*50w solar panels (50W SOLAR KIT)
2、 1 set 3m cable with PV connector
3、 1 set 3m cable with Alligator clip
4、 1*10A Controller
OR
1、 2*50w solar panels(100W SOLAR KIT)
2、 1 set 3m cable with PV connector
3、 1 set 3m cable with Alligator clip
4、 1*10A Controller
5、 1 set 2 in 1 adapter
19.8V 50W Solar Panel Specification:
Cell material: Mono crystalline silicon
Pmax (Power at Maximum under STC) :50W
Imp (Current at Max Power, A) : 2.52A
Vmp (Voltage at Max Power, V) : 19.8V
Voc (Voltage at Open Circuit) :21.8V
Isc (Current at Short Cir cuit, A) : 2.65A
Solar Cell Efficiency: 24%

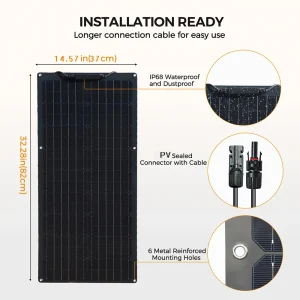

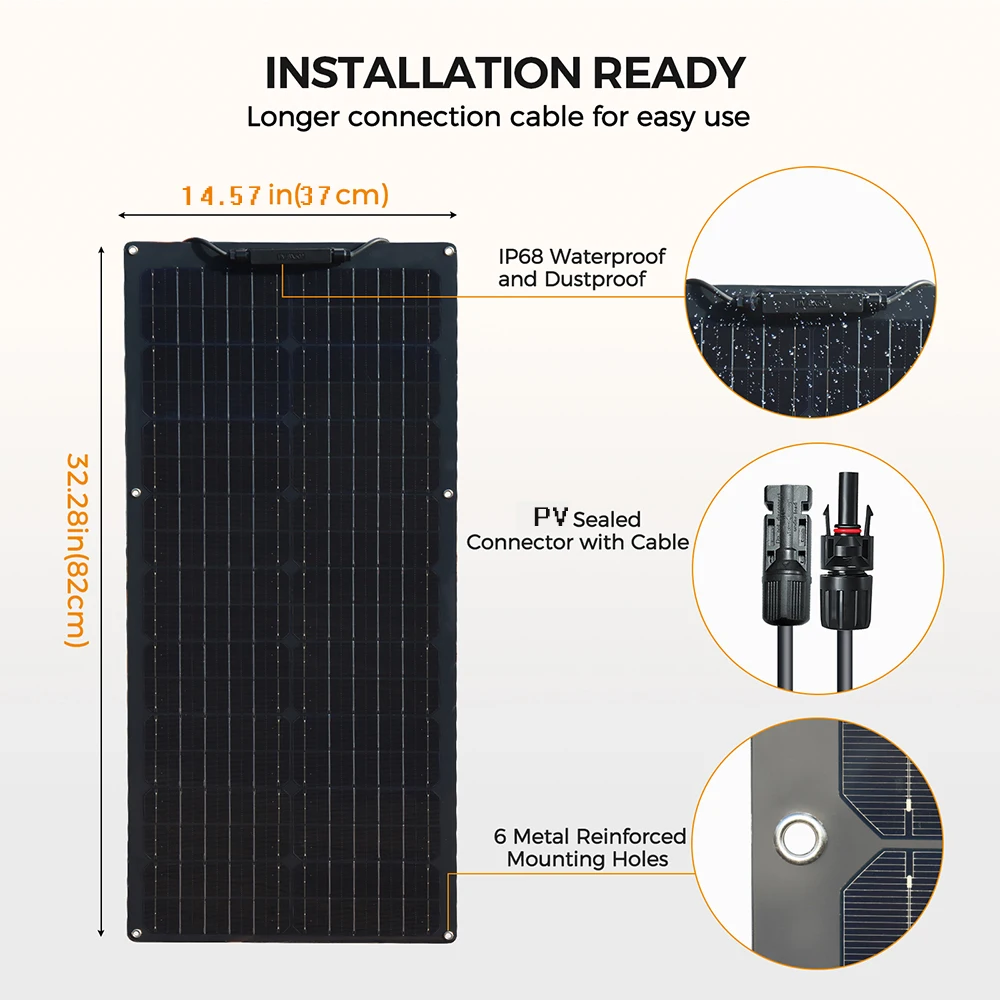

Size of module:820*370*3mm
Net Weight: 3.3Ib (1.5kg)
Length of Cables: 19.7(inches)
Standard Test Conditions : lrradiance 1000w/m2,Temperature 25℃,AM=1.5
Features:
Off-Grid Solar System User Manual Use attention
Use attention
1. Please install the solar panel system in cloudy days. If installing in strong light, pay attention to protection against electric shock.
2. Normally red color is the positive electrode and black color is the negative electrode. The positive and negative electrodes must be installed correctly. Do not directly connect the positive and negative poles of the solar panel to avoid short circuit.
3. Do not scratch or step on the solar panel during installation and use. Check in advance whether the controller, battery, inverter and other accessories are normal.
Installation process
1. First connect the battery to the controller to activate the controller. There is no display if only the solar panel is connected to the controller.
2. Then connect the solar panels, please install solar modules in a sunny and shadow less area. When using a 12V system, configuring 12V batteries and 16V/18V solar panels, so multiple solar panels need to be connected in parallel. When using a 24V system, configuring 24V batteries and 32V/36V solar panels, so every 2 solar panels need to be connected in series, then connect all pairs in parallel. And so on. The parallel requires the same voltage, especially the series requires the same current. The schematic diagrams of parallel and series connection of solar panels are as follows (the same applies to batteries):
3. Next, connect the inverter to the battery, and finally connect the load to the inverter. The low-power DC load can be directly connected to the controller, and the AC load needs to be connected to the inverter. First connect the inverter wire to the positive and negative poles of the inverter and tighten them, and then connect the other end of the wire to the positive and negative poles of the battery. It is normal if there is a small spark. Then connect the load to the inverter and turn on the inverter switch to start the load. Do not connect the inverter to the controller to avoid damage.
| Color | 100W SOLAR PANEL, 50W SOLAR PANEL, SOLAR KIT 100W |
|---|---|
| Ships From | United States |
