Description
1 pcs flexible solar panel: 18V 120W solar panel
Brand Name: BOGUANG
Certification: CE, FCC, RoHS, weee

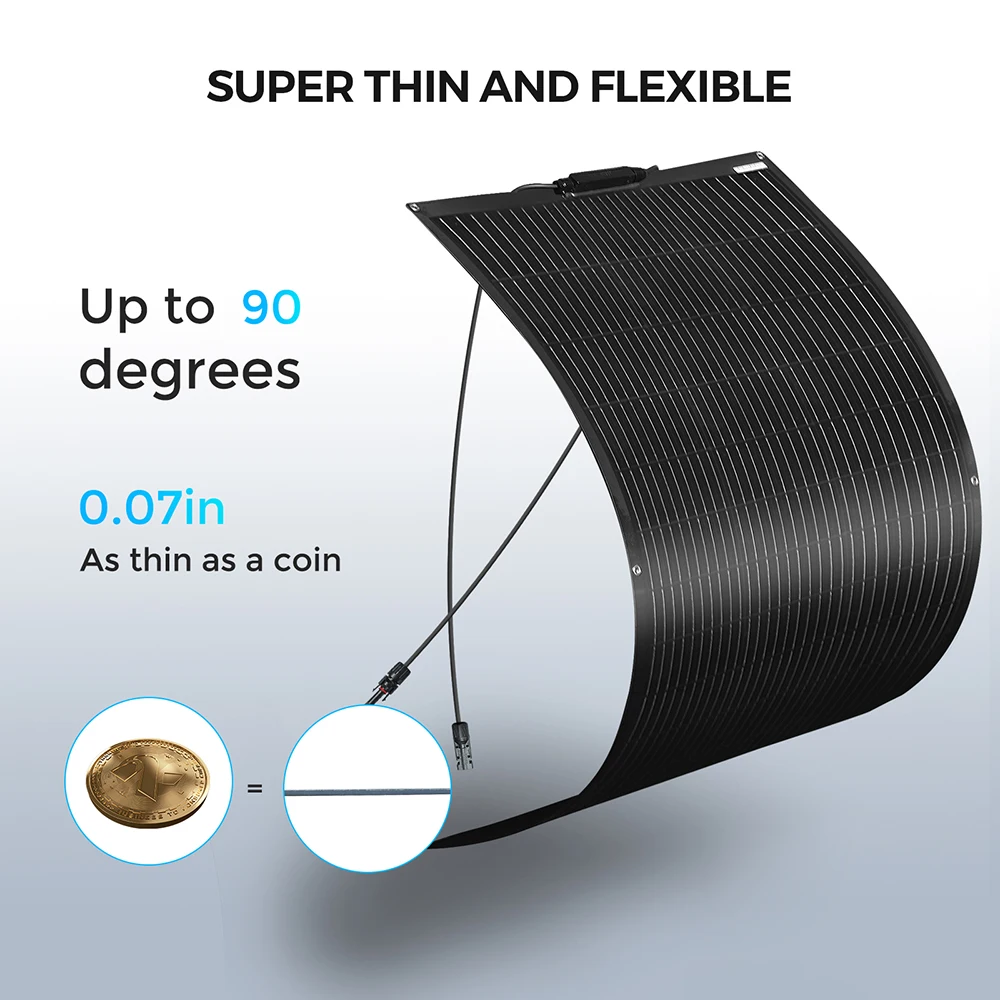

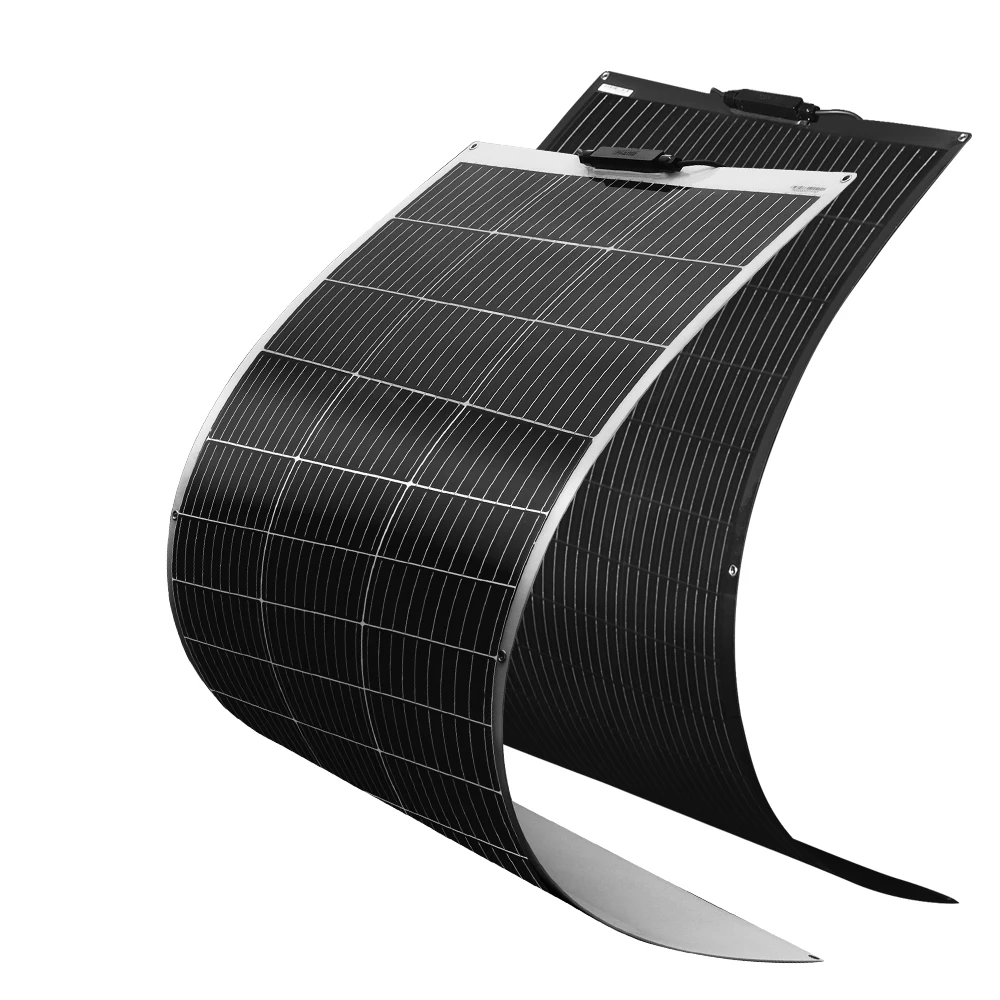

Flexible Solar Panel: Yes
Foldable Solar Panel: No
Material: Monocrystalline Silicon
Max. Power: 120 watt
Model Number: solar panel
Module Efficien: 24%
Nominal Capacity: 120w
Number of Cells: 33 cells
Number of Panels: 1
Rigid Solar Panel: No
SOLAR PANEL: MONO SOLAR CELL

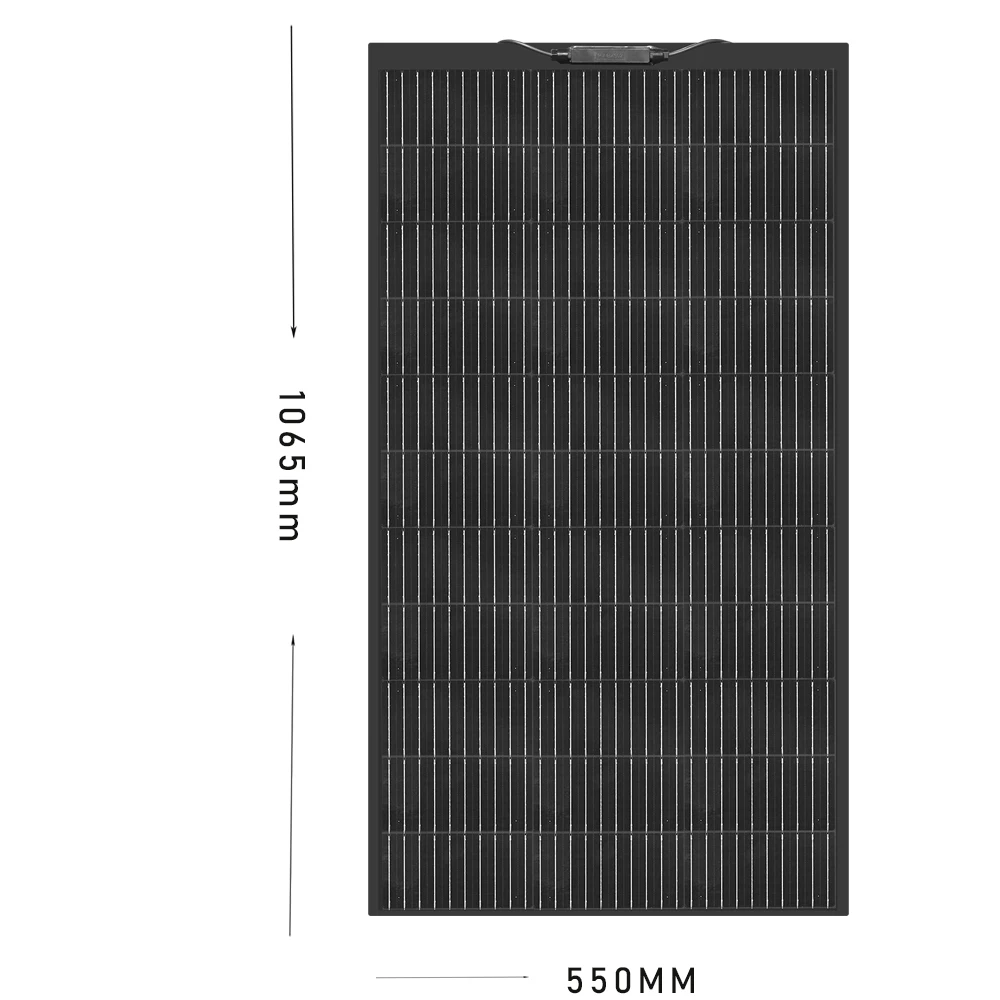

Size: 1065*550*2.5mm
Type: Solar Cells
is_customized: Yes
solar panel Vmp: 18V

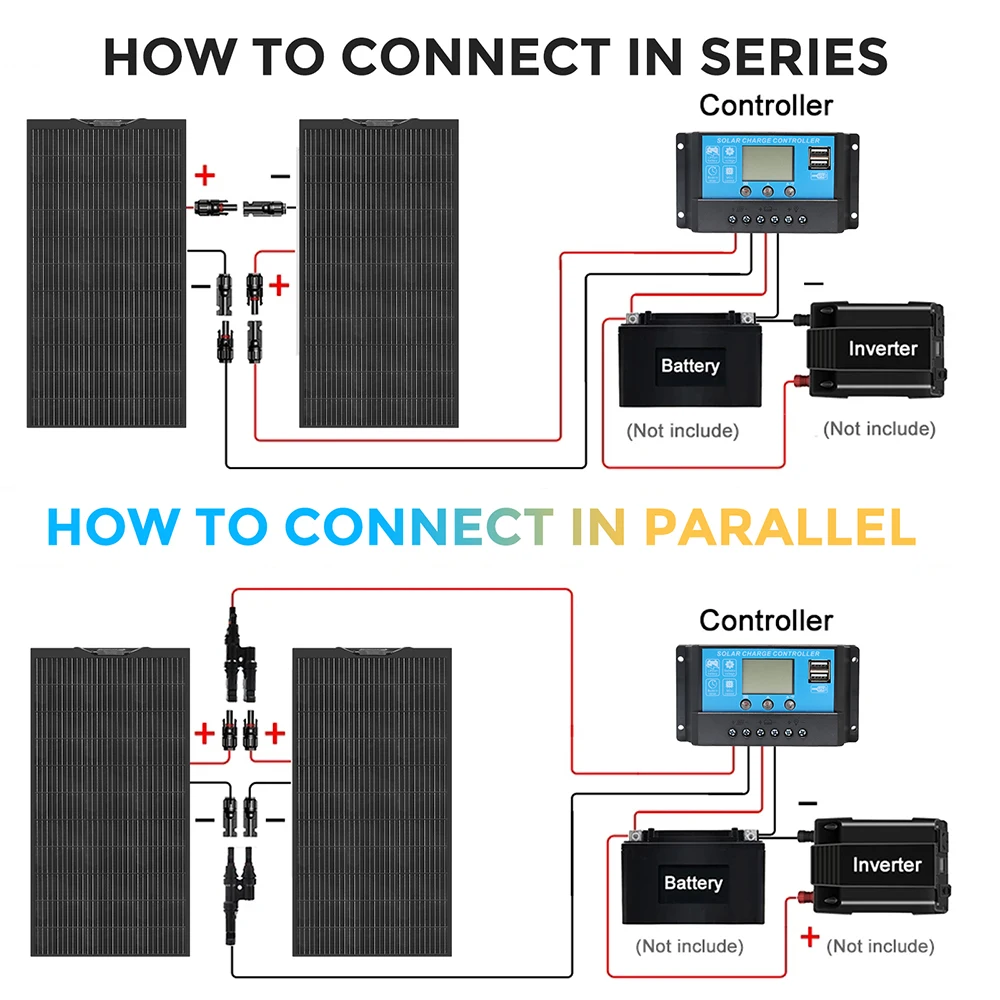

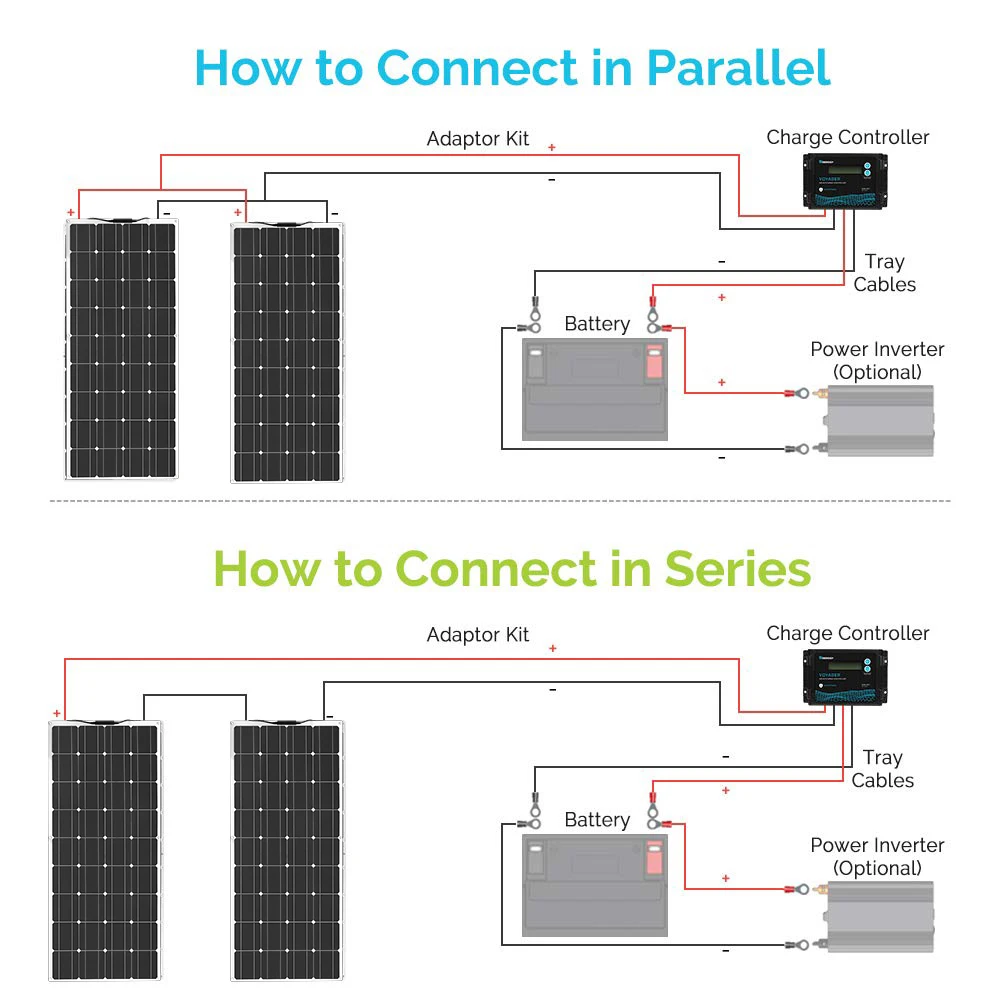

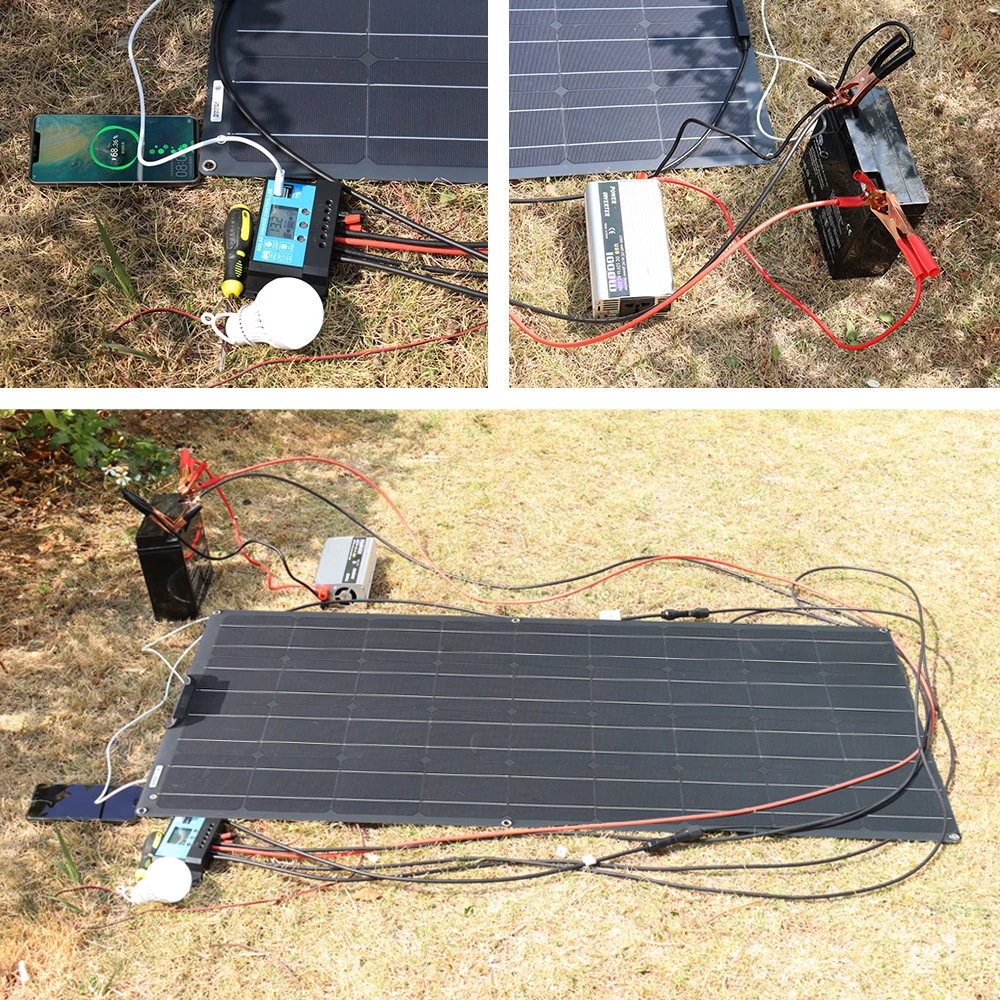

solar panel parallel connection: solar panel 12v solar battery
solar panel series connection: solar panel 24v solar battery

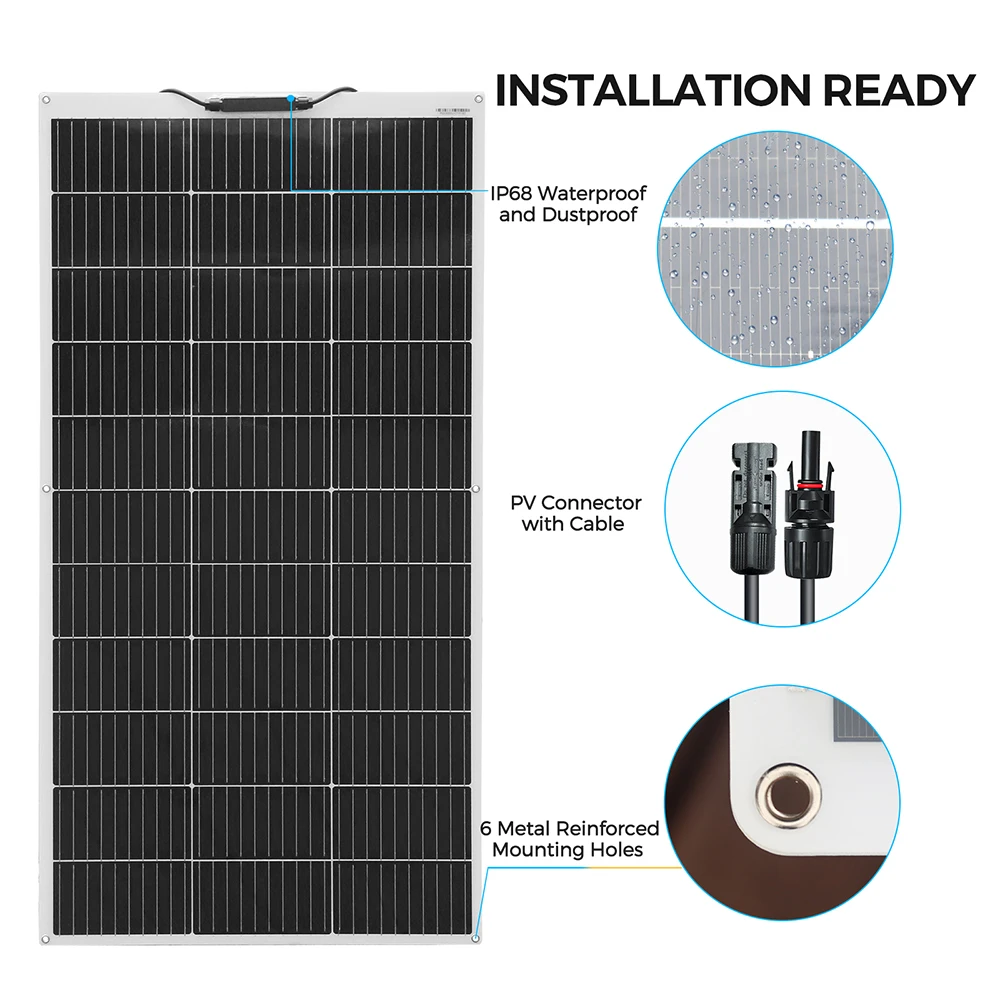

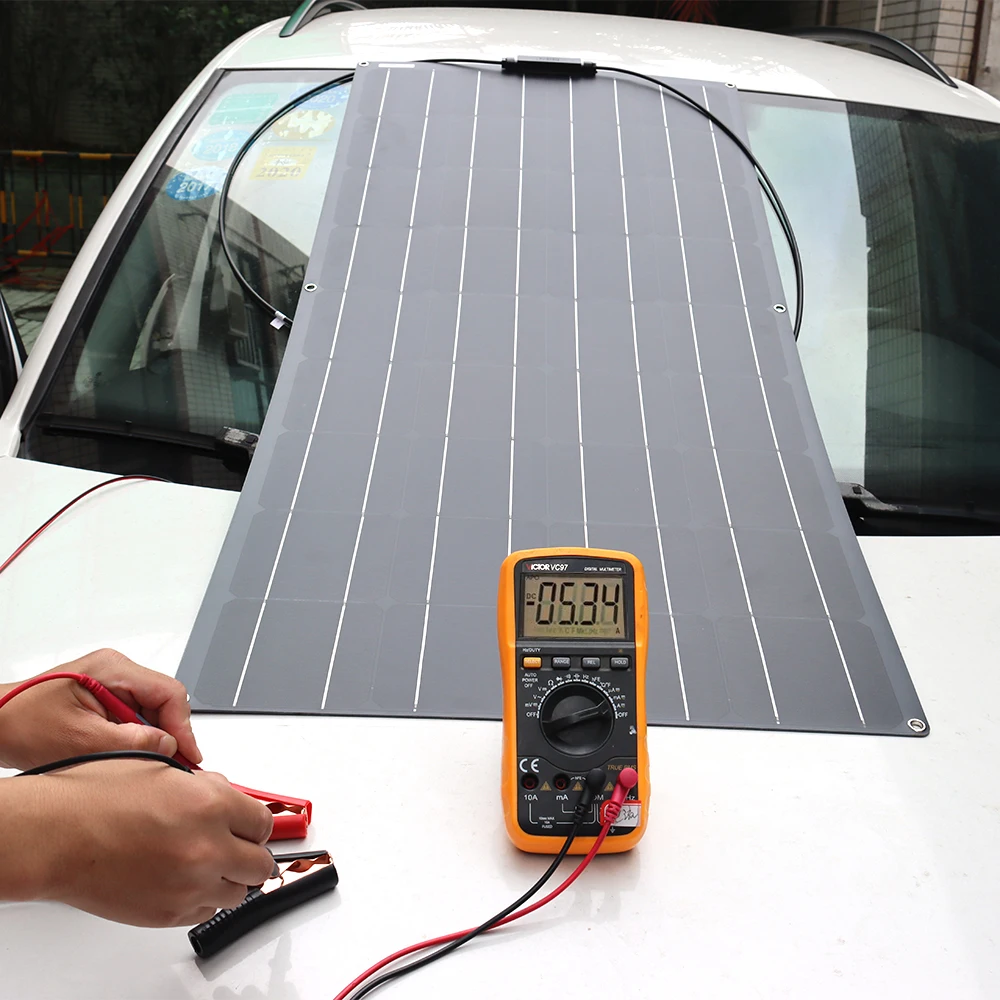

Boguang 120W Photovoltaic Solar Panel Mono crystalline cell 120W Lightweight Flexible Solar Panels Module 18V for 12V charger
120W solar panel Specifications
Maximum power (Pmax) 120W
Output tolerance ± 5%
Maximum system voltage 700V DC
Open circuit voltage (Voc) 21.78V
Short circuit current (Isc) 6.9 A
Maximum power voltage (Vmp) 18.15V
Maximum power current (Imp) 6.6A
Cell efficiency 24%
Operating temperature (NOCT) 45±2℃
Temperature range -40℃~+80℃
Number of cells 33pcs
Weight 2060g
Size 1065*550*3 mm
Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5
